ANSI/ASME B16.25, Buttwelding Ends

ANSI/ASME B16.25 Standard covers the preparation of butt welding ends of piping components to be joined into a piping system by welding.

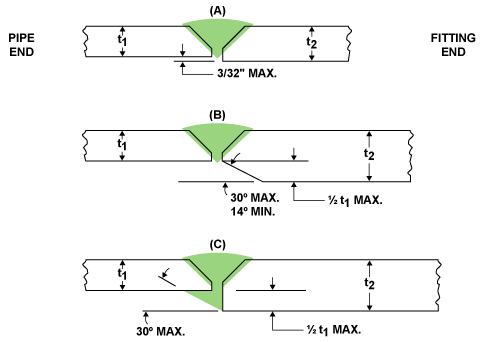

It includes requirements forwelding bevels, for external and internal shaping of heavy-wall components, and for preparation of internal ends (including dimensions and tolerances).

Coverage includes preparation for joints with the following:

ANSI/ASME B16.25 Standard applies to any metallic materials for which a welding procedure can be satisfactorily qualified, but does not prescribe specific welding processes or procedures.

Unless otherwise specified by the purchaser, it does not apply towelding ends conforming to ASME B16.5, B16.9, or B16.47.
